PanGood "X-POWER" Inboard/Outboard Motor
The motor installation height is reduced by 40%, the deadweight is reduced by 50%, the full working condition double 90 efficiency, and the full machine power is pulled in 2 seconds.
Industry status
Product Advantages
Lower Installation Height
With the motor installation height being 40% shorter than that of traditional motors, the ship has a lower center of gravity, more stable driving, and easier control.
Lighter Weight
The weight is reduced by 50%, and the lightweight design of the whole machine can bring about a weight reduction of more than 100 kilograms. The following figure is a comparison of the same 300 horsepower motor.
More Stable Machine
Using special materials + surface-mounted magnetic steel technology, the safety factor of the rotor reaches 5, the moment of inertia is reduced by 30%, and the whole machine is more stable.
Stronger Protection
The gearbox adopts the sliding gear sleeve shifting power technology route, and the shifting speed is less than 0.6s (competitors are about 1s).
Longer Lifespan
The dual-drive axle model can realize differential shifting and power compensation of the front and rear axles, realize shifting without power interruption.
Higher Reliability
PG electric drive system has a peak power of 460kW and an output time of >60s, maintaining long-term strong power output, and stronger ability to get out of trouble.
Related products
Related Products
- Fully matched with the flywheel housing, compact structure
- Axial dimension shortened by more than 2/3
- Overlapping with the engine's high efficiency range, more fuel-efficient
- Higher torque can be output even at low speeds

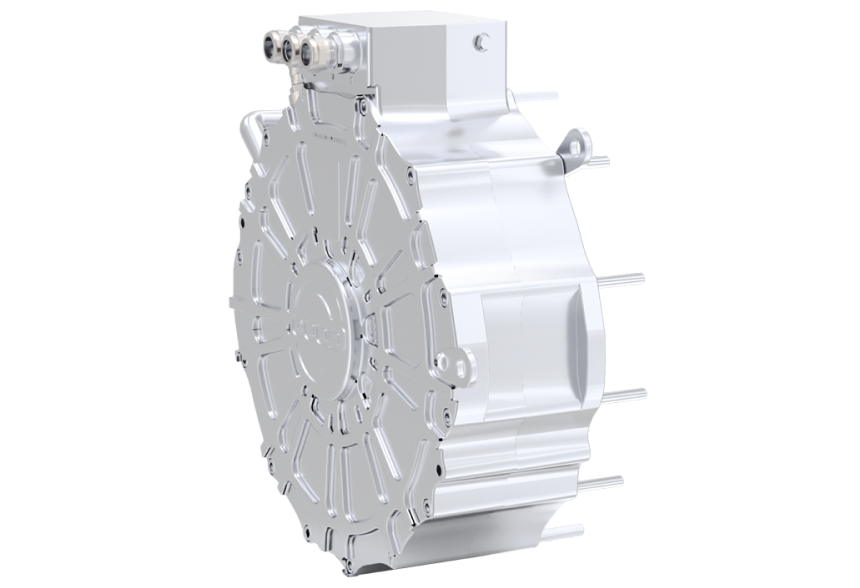

ICS188K
- Rated voltage (VDC)540
- Rated torque (N·m)330
- Rated speed (rpm)3200
- Rated power (kW)111
- Dimensions (mm) 410X164.6X518.5
- Maximum power (kW) 188
- Peak speed (rpm)8000
- Peak torque (N·m)800
- Maximum efficiency96%
- Weight（kg）65

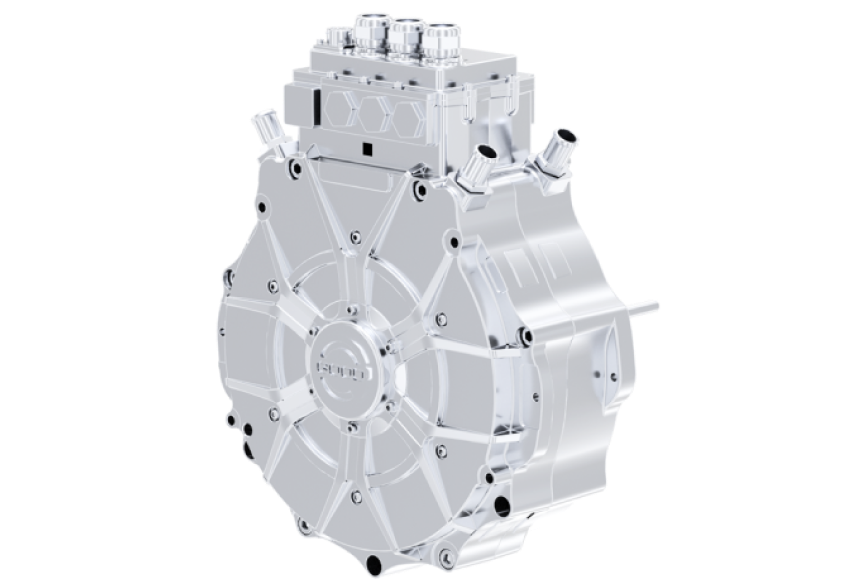

ICS230K
- Rated voltage (VAC/VDC)380/540
- Maximum power (kW)230
- Rated power (kW)115
- Rated speed (rpm)2200
- Peak speed (rpm)5500
- Rated torque (Nm)500
- Peak torque (Nm)1200
- Maximum efficiency97.5%
- Weight (kg)105
- Dimensions (mm)Φ480X199X490

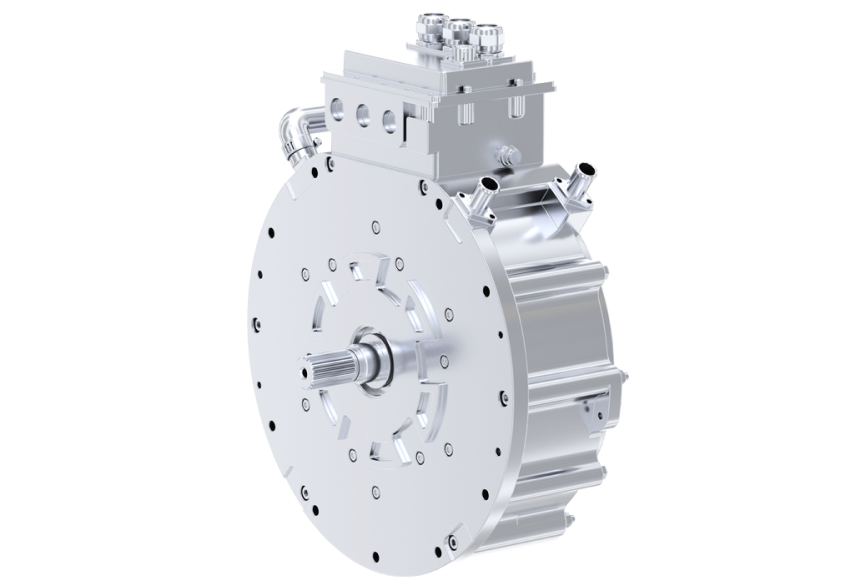

ICS300K
- Rated voltage (VDC) 630
- Rated torque (N·m)1100
- Rated speed (rpm)1500
- Rated power (kW)173
- Dimensions (mm)555X202X549
- Maximum power (kW)30
- Peak speed (rpm)4000
- Peak torque (N·m) 2400
- Maximum efficiency 97.3%
- Weight（kg）148
