Green New Mines, New Productivity

PanGood "X-POWER" Mining Truck Solution

The solution adopts the industry-leading "X-POWER" axial flux motor technology, which has better quality, higher reliability, and greater power. It can easily cope with various high-load scenarios in mining areas and help to comprehensively optimize and improve operating costs and value benefits.

Consult Now 400-9600-991 Play the Video

Industry Current Situation

High Requirements for Reliability

Among them, the motor is one of the core components of new energy mining trucks. Its product quality and reliability are directly related to the vehicle's attendance rate and operating income. High-quality and high-performance motors are more conducive to achieving stable operation, stable attendance, and stable income.

Strong Need for Motivation

85% of mining transportation is heavy-load composite scenarios. Most of the operating scenarios of new energy mining trucks face complex, harsh, continuous mine climbing, continuous high horsepower output under heavy load conditions and other extreme working conditions, which require electric drive systems that can provide high power and high torque.

Great Demand for Cruising Range

As the single device with the largest power consumption, the working performance and efficiency of the motor are closely related to the vehicle's range. High-performance and high-efficiency motors can enable vehicles to have better range and bring better operational efficiency and value.

PanGood's Extended-range Generator Solution

The range extender and battery provide power together, paired with a high-power range extender, the vehicle has stronger power and longer range.

The axial size of the range extender generator can be reduced by more than 2/3, making the layout more convenient; the universal curve characteristics of the engine are fully considered, and the high-efficiency areas of the engine and the range extender generator are superimposed, so that the entire system operates at the best economic point, and the comprehensive energy saving rate can reach more than 20%.

Shorter Size

The system axial size is shortened by 500mm, the structure is more compact, and the layout is more convenient

More Power Generation

The motor has a large high efficiency range and good power generation effect. One liter of oil can generate 4.2 degrees of power

Better Adaptability

Applicable to multiple displacement and multiple brands of engines, stable and reliable

Range Extender Engine

Fully matched with the flywheel housing, compact structure
Axial dimension shortened by more than 2/3
Overlapping with the engine's high efficiency range, more fuel-efficient
Higher torque can be output even at low speeds

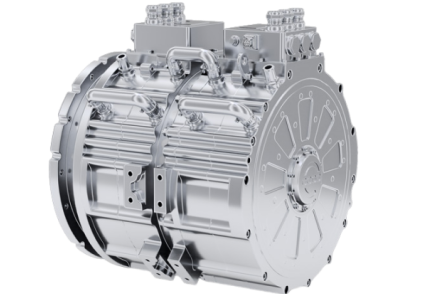

ISG300K

Rated cold/hot power [kW] 377/314

Rated speed [r/min] 1500

Flywheel mechanical interface SAE1

Rated voltage [VDC] 630

Matching controller module [A] 800×2

Weight and tolerance [kg] 320±1

Rated torque [Nm] 2400

Peak speed [r/min] 2600

Insulation grade H

Protection grade IP68

Cooling methodLiquid cooling/18L

Dimensions and tolerance [mm] 580X553X627.5

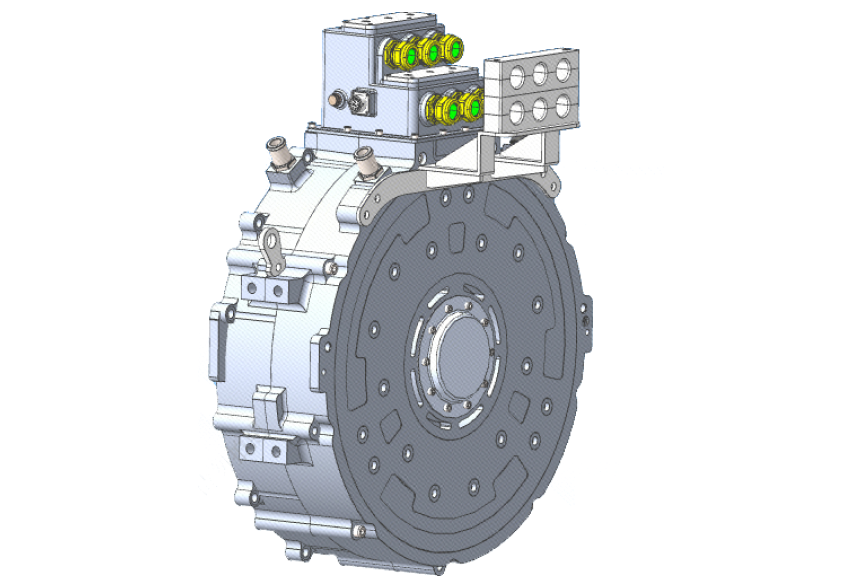

ISG330K

Rated cold/hot power [kW] 375/345

Rated speed [r/min] 1500

Flywheel mechanical interface SAE1

Rated voltage [VDC] 630

Matching controller module [A] 1600

Weight and tolerance [kg] 190

Rated torque [Nm]2400/2200 (hot)

Peak speed [r/min] 2500

Insulation class H

Protection class IP68

Cooling method Liquid cooling/20L

Dimensions and tolerance [mm] 600x620x200

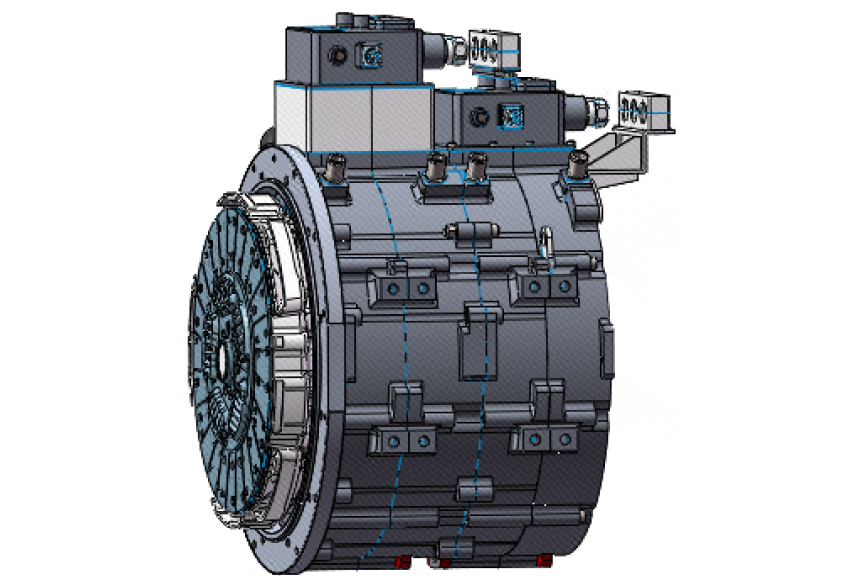

ISG450K

Rated cold/hot power [kW] 470/440

Rated speed [r/min] 1500

Flywheel mechanical interface SAE1

Rated voltage [VDC] 620

Matching controller module [A] 1200×2

Weight and tolerance [kg] 358±1

Rated torque [Nm]3000/hot 2700

Peak speed [r/min] 2500

Insulation class H

Protection class IP68

Cooling methodLiquid cooling/20L

Dimensions and tolerance [mm]592x407x784

PanGood Mining Truck Electric Drive Solution

Using dual motor + AMT drive architecture, it has simple structure and high reliability.

The motor has a large high-efficiency range, strong driving force and high power generation efficiency. It can make full use of the brake energy recovery system and can almost do without charging on slopes greater than 9%, greatly reducing energy consumption costs.

Stronger Power

Large continuous/peak output power and torque, stronger kinetic energy under heavy load and high load

Higher Efficiency

Dual efficiency MAP 90, large high efficiency range, more fuel-saving and power-saving

Better Operation

Leading quality, strong reliability, continuous verification under various working conditions, more worry-free operation

Electric Drive Assembly

Motor peak torque density> 16.5Nm/kg
Axial dimension is 470mm shorter than traditional radial motor
Motor weight is 362kg, system weight is less than 650kg, meeting the lightweight requirements of the whole vehicle
Motor peak power is 900kW, with strong power, suitable for 105-150t mining trucks, covering a wide range

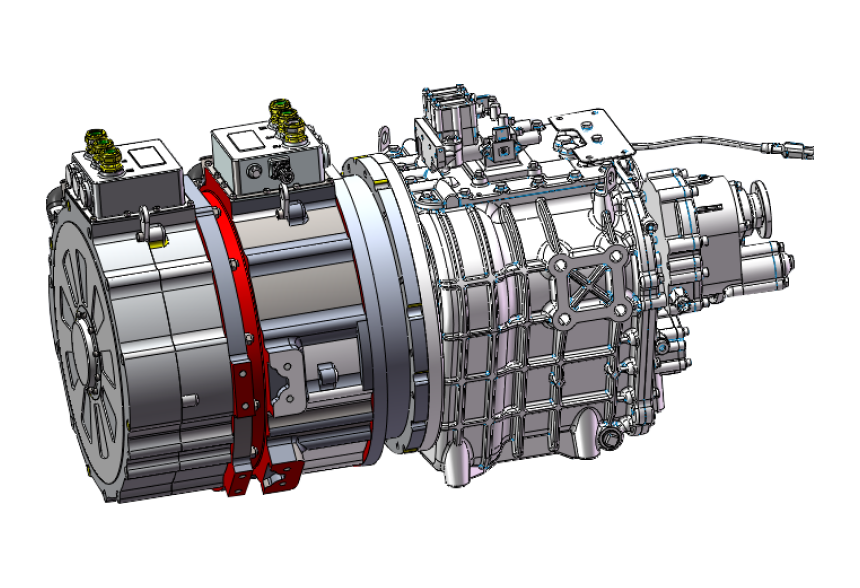

90T-105T Mining Truck Electric Drive

Rated/peak power [kW] 345/600

Rated/peak torque [Nm] 2200/3000

Rated/peak speed [rpm] 1500/4000

Weight [kg] 320

Cooling methodWater cooling

Protection level IP68

Dimensions including junction box [mm] 645×580×555

Peak torque density [Nm/kg] 9.375

Transmission type 4AMT

Transmission weight [kg] 360

Transmission model 4E300

Comprehensive speed ratio 6.5/3.995/2.123/1

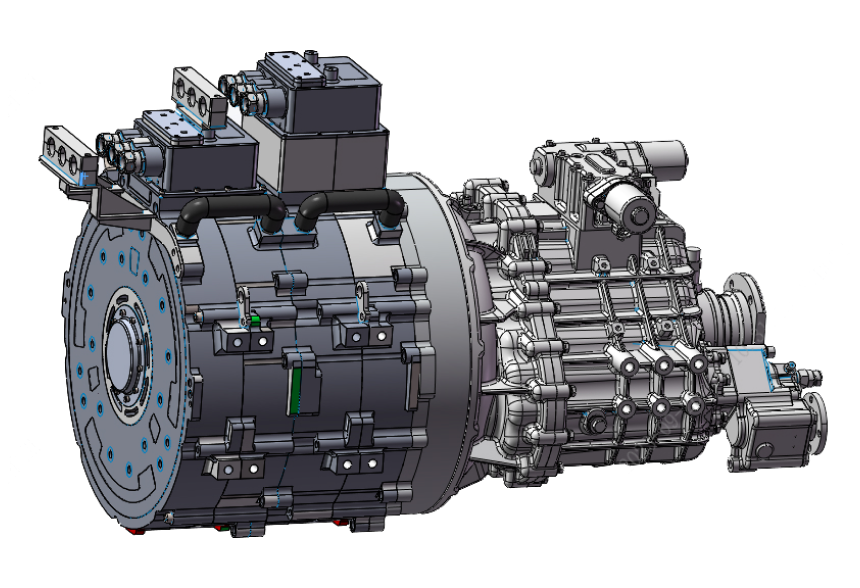

105-150t Mining Truck

Rated/peak power [kW] 500/800

Rated/peak torque [Nm] 2650/4600

Rated/peak speed [rpm] 1800/3500

Weight [kg] 362

Cooling methodWater cooling

Protection level IP69

Dimensions including terminal box [mm] 778×592×413

Peak torque density [Nm/kg] 12.71

Transmission type 3AMT

Transmission weight [kg] 255

Transmission model 3S4800E

Comprehensive speed ratio 4.584/1.922/1

105-150t Mining Truck

Rated/peak power [kW] 620/900

Rated/peak torque [Nm] 3120/6000

Rated/peak speed [rpm] 1800/3500

Weight [kg] 362

Cooling methodWater cooling

Protection level IP69

Dimensions including terminal box [mm] 778×592×413

Peak torque density [Nm/kg] 12.71

Transmission type 3AMT

Transmission weight [kg] 255

Transmission model 3S4800E

Comprehensive speed ratio 4.584、1.922、1
