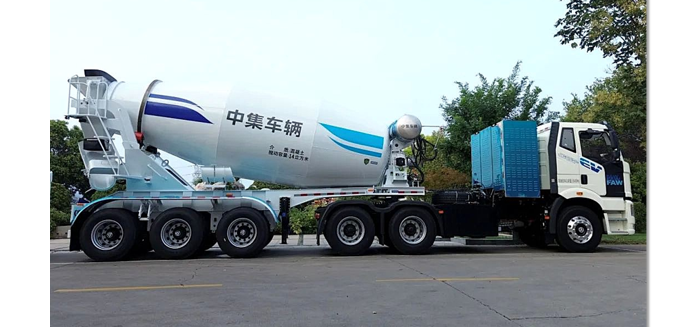

The infrastructure sector's recovery has driven continuous growth in the new energy mixer truck market. Orders are being delivered nationwide, and PanGood's electric drive systems for mixer truck superstructures remain highly sought-after, with cumulative shipments nearing 4,000 units. From January to June 2025 alone, nearly 3,000 units were delivered, capturing over 30% market share.

Compared to traditional superstructure drive motors, PanGood's system offers multiple advantages: compact size, light weight, stable connection, and high operational efficiency. It is batch-installed on multiple models from leading brands including Foton, Shacman, XCMG, SANY, Zoomlion, FAW, Sinotruk, Yutong, and Farizon, while establishing deep partnerships with specialized mixer body builders like CIMC Ruijiang, Lingyu, and Xingma. Highly praised by domestic customers and end-users nationwide, and the system is also exported to Southeast Asia, Europe, the Americas, and other regions.

Axial dimension: 225mm – Easy installation & maintenance

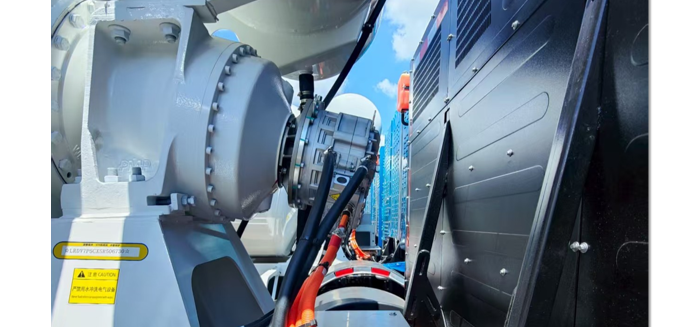

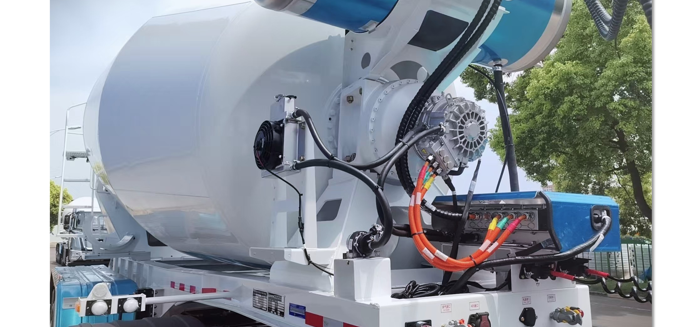

Conventional "backpack-style" electric mixers have limited space between the battery compartment and cab. PanGood's "axial flux motor + gearbox" assembly has a total axial dimension of just 225mm –over 50% shorter than radial flux motor solutions at equivalent power. This provides ample space for installation and maintenance, significantly improving operational convenience.

System weight: 34kg – More robust drum connection

CAE analysis shows: When the mixer superstructure e-drive assembly exceeds 45kg, a reinforced gearbox housing is required to prevent excessive local stress on the housing and bolts, which can cause housing damage or bolt fracture.

Market research indicates: Radial flux motor-based assemblies typically weigh over 80kg, exerting substantial stress on the drum and gearbox. PanGood's "axial flux motor + gearbox" assembly weighs ≤34kg, minimizing stress impact on the drum shell for a more secure and reliable connection.

Dual 90% high-efficiency zone – Energy-saving & reliable long-term operation

PanGood axial flux motor achieves >90% efficiency across >90% of operating conditions. Direct connection to the working unit reduces transmission energy loss and lowers overall vehicle energy consumption, extending range. Its unique electromagnetic structure virtually eliminates bearing electrical corrosion risk. With 4x larger heat dissipation area and 4x improved thermal performance, it ensures stable, reliable long-term operation.

This assembly seamlessly integrates with hybrid, hydrogen fuel cell, range-extended, and other new energy mixer trucks. It also enables "superstructure electrification" for conventional fuel trucks, enabling precise energy cost management and creating greater operational value.

Aligned with real-world mixer truck operations, PanGood also offers customized full-vehicle e-drive solutions to maximize user value. Taking the PanGood Integrated E-Axle as an example: The "axial flux motor + multi-speed transmission" powertrain not only adapts better to diverse conditions but also reduces energy consumption by >15% year-on-year. Its compact design frees up chassis space for bottom-mounted batteries, lowering the center of gravity by ≈130mm and significantly enhancing anti-roll stability for safer driving.

PanGood looks forward to collaborating with more partners to solidify market expansion through technological innovation and drive the e-drive industry's technical revolution.
