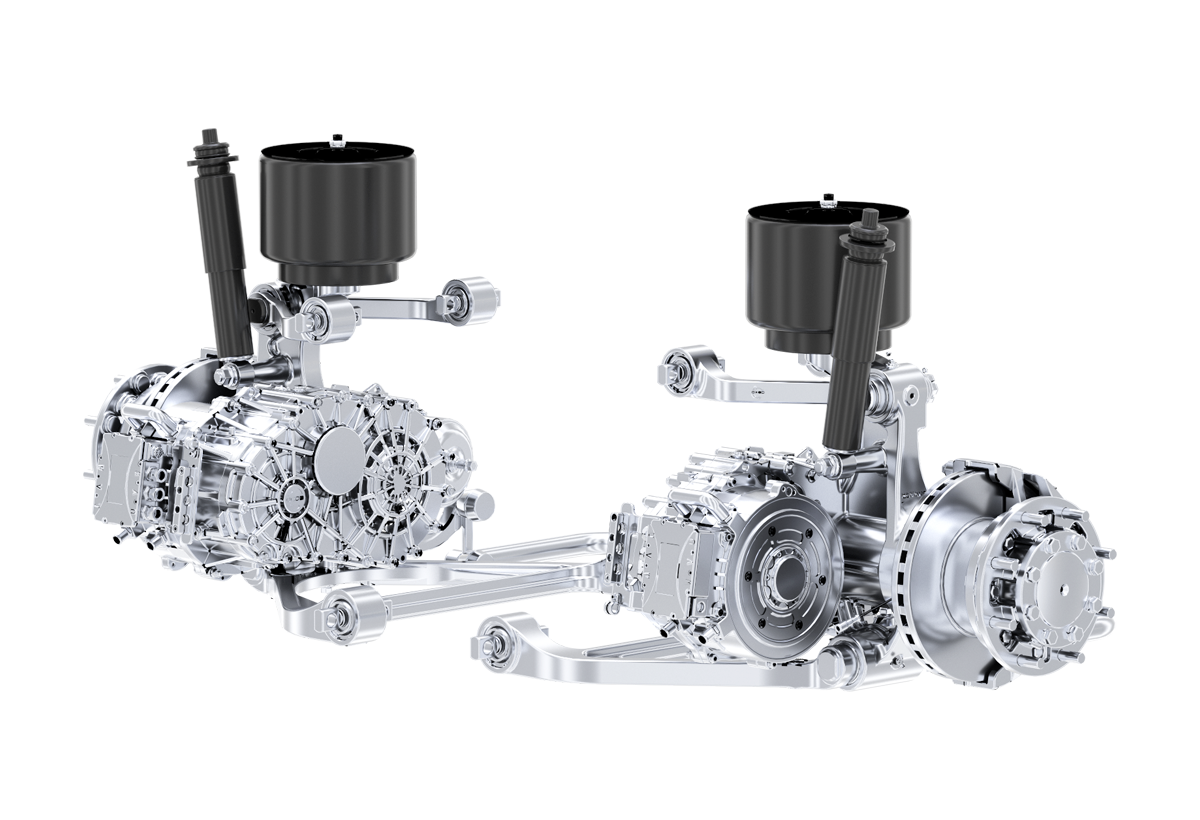

PDS108KF
Brochures
| Maximum axle load (kg) | 7000 |
| Gearbox ratio | 16.838/16.297 |
| Rim installation diameter (mm) | Φ220.8 |
| Rim mounting end face distance (mm) | 2364 |
| Wheel-end maximum output torque (N·m) | 11786/11408 |
| Wheel bolt distribution circle (mm) | Φ275/Φ335 |
| Wheel bolt specifications (mm) | M20x1.5/M22x1.5 |
| Brake form | Pneumatic disc brake |
| Brake specifications | 19.5"/22.5" |
| Assembly weight (kg) | 745 |
