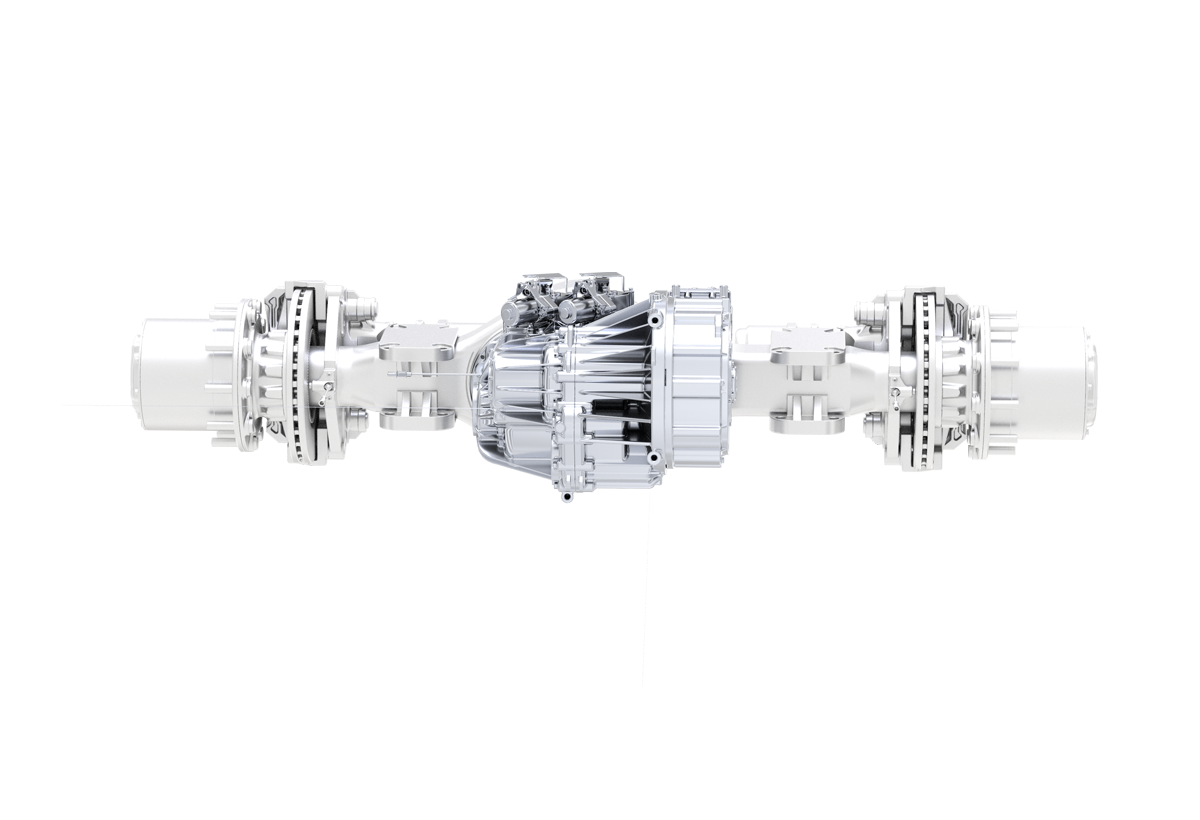

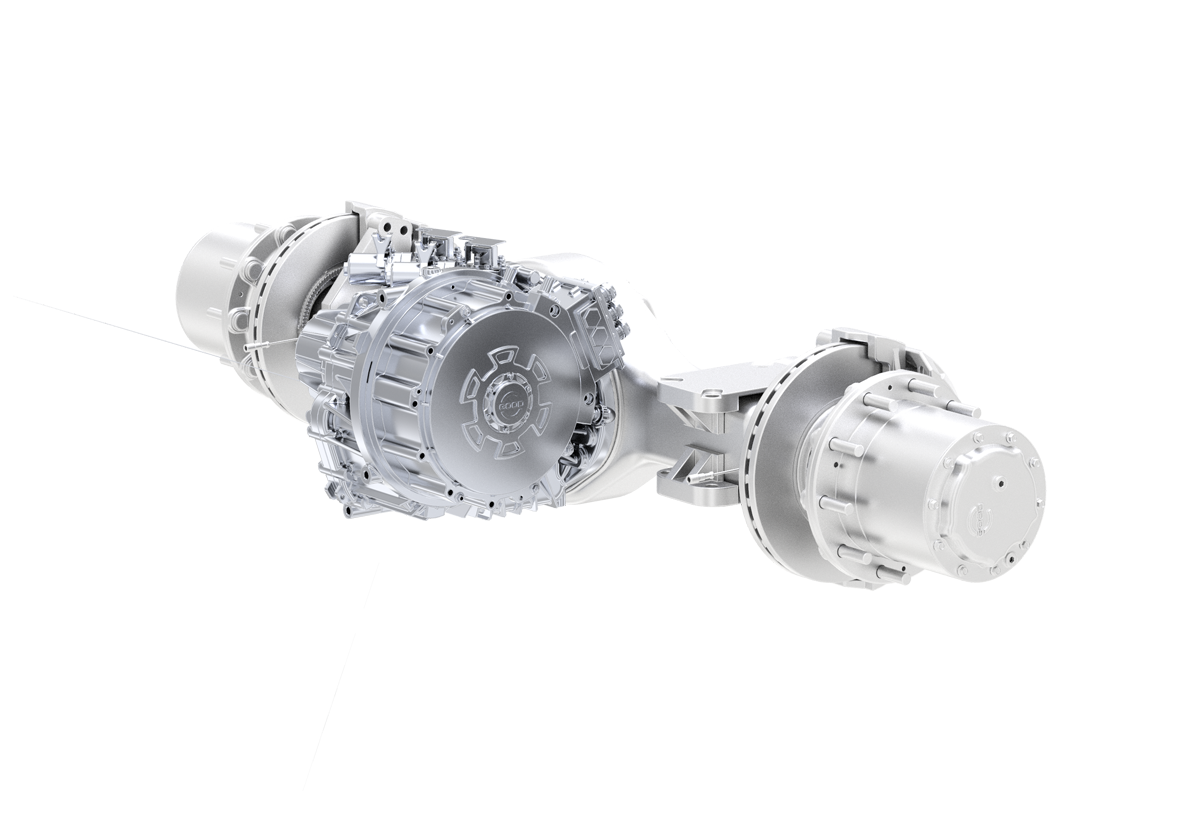

PDS108KCS
Brochures
| Maximum axle load (kg) | 11500 |
| Gearbox ratio | 52.105/22.851/10.086 |
| Rim installation diameter (mm) | Φ280.8 |
| Rim mounting end face distance (mm) | 1842 |
| Wheel-end maximum output torque (N·m) | 37411 |
| Wheel bolt distribution circle (mm) | Φ335 |
| Wheel bolt specifications (mm) | M22x1.5 |
| Brake form | Pneumatic disc brake |
| Brake specifications | 22.5″ |
| Assembly weight (kg) | 858 |
