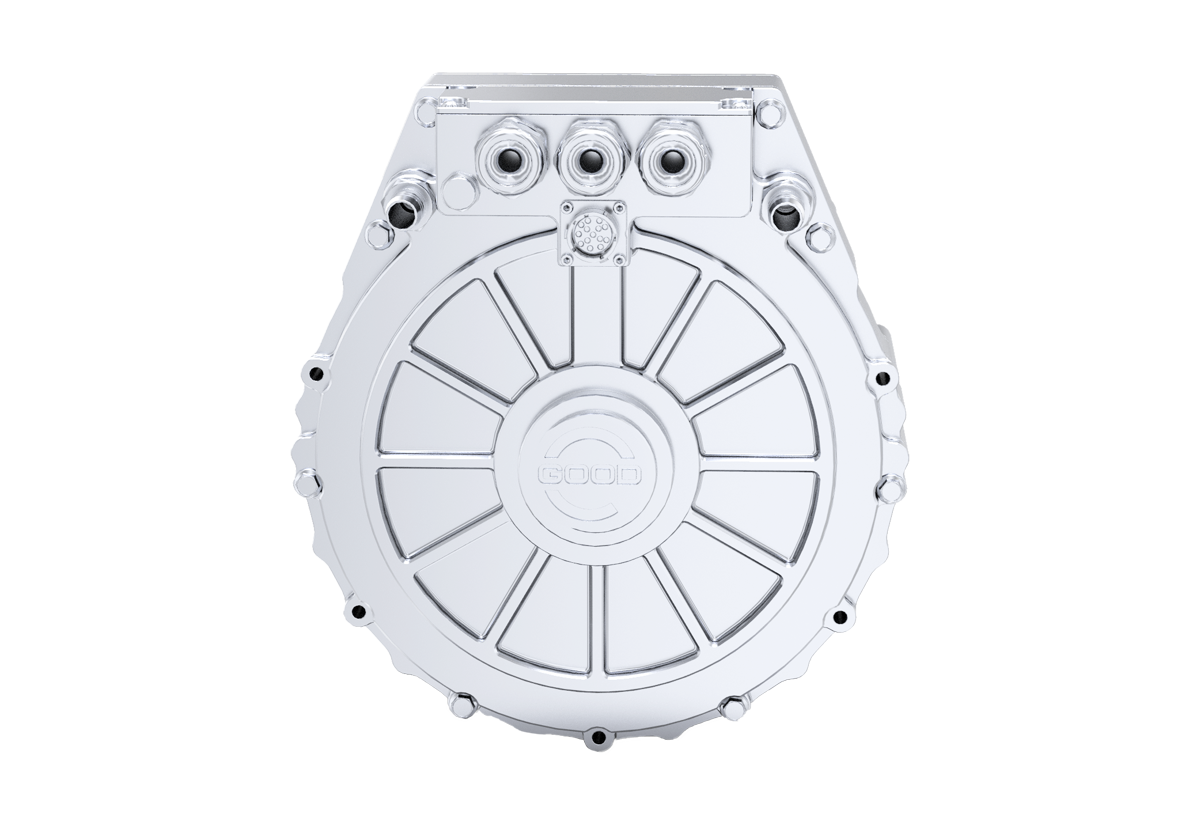

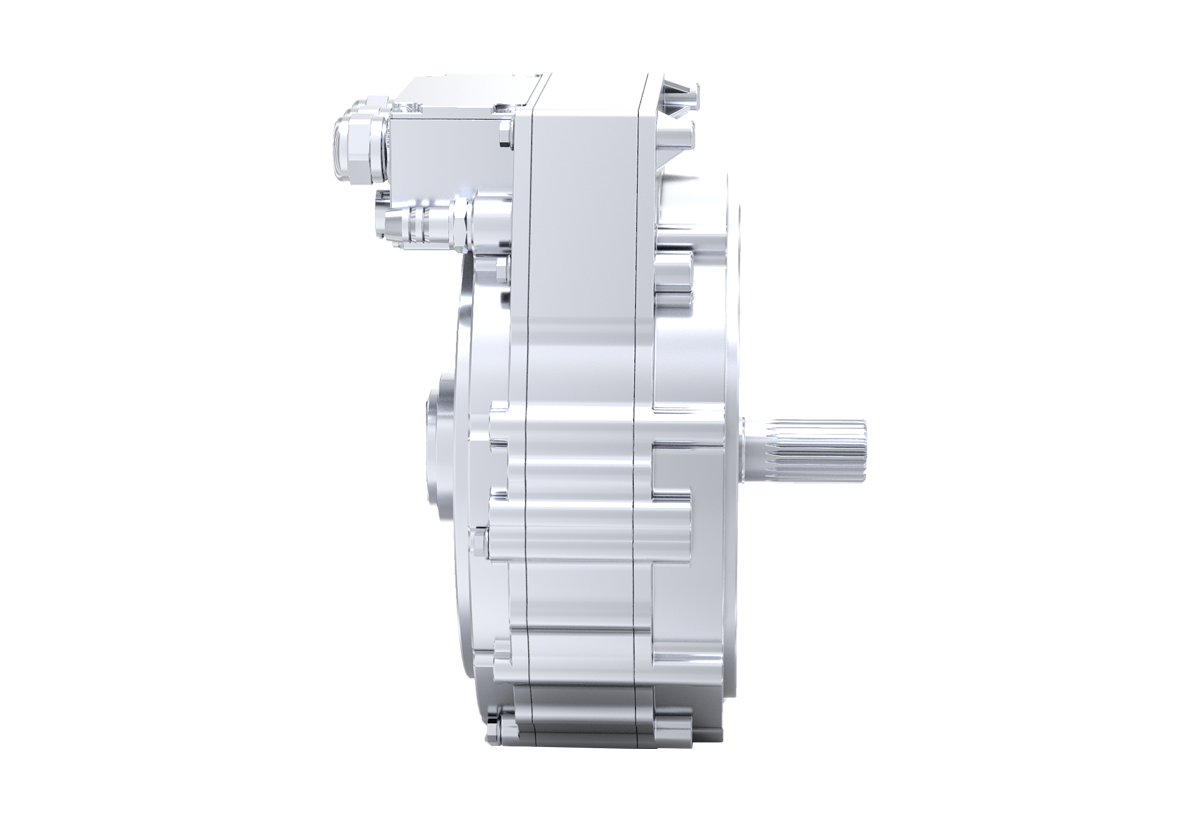

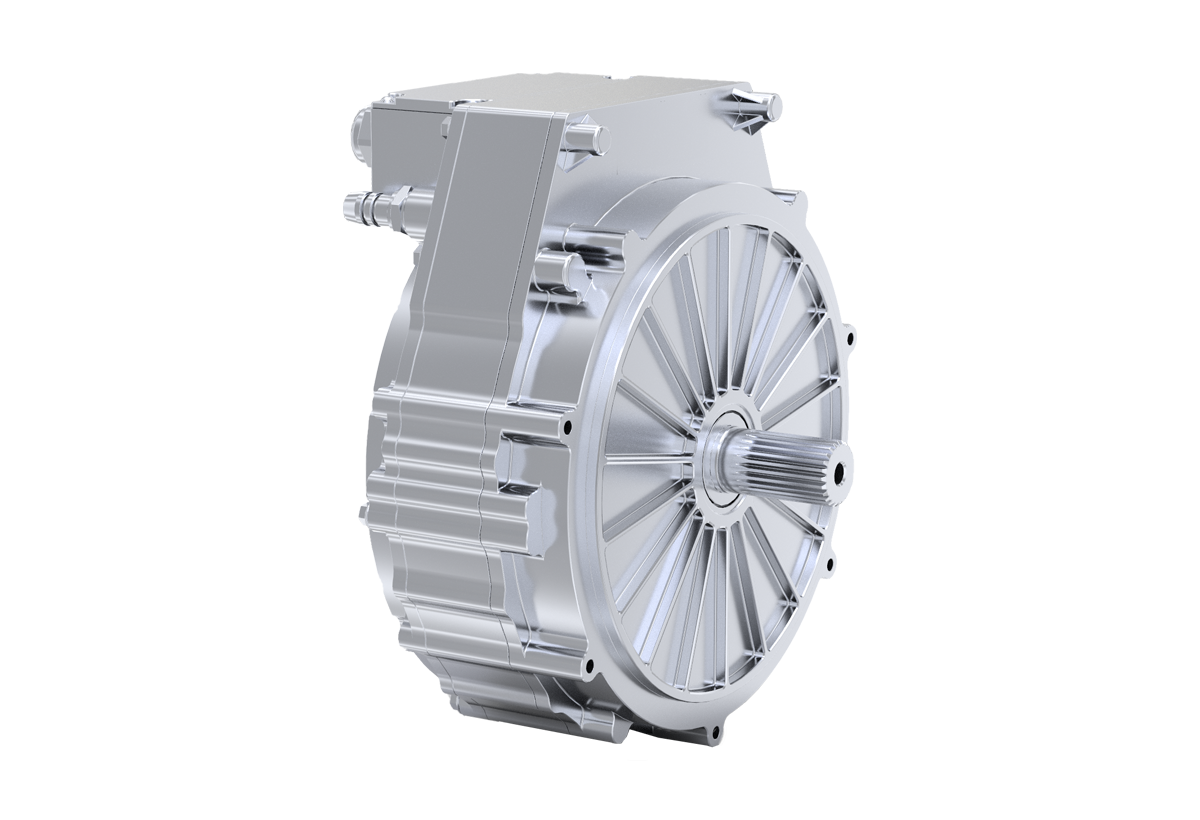

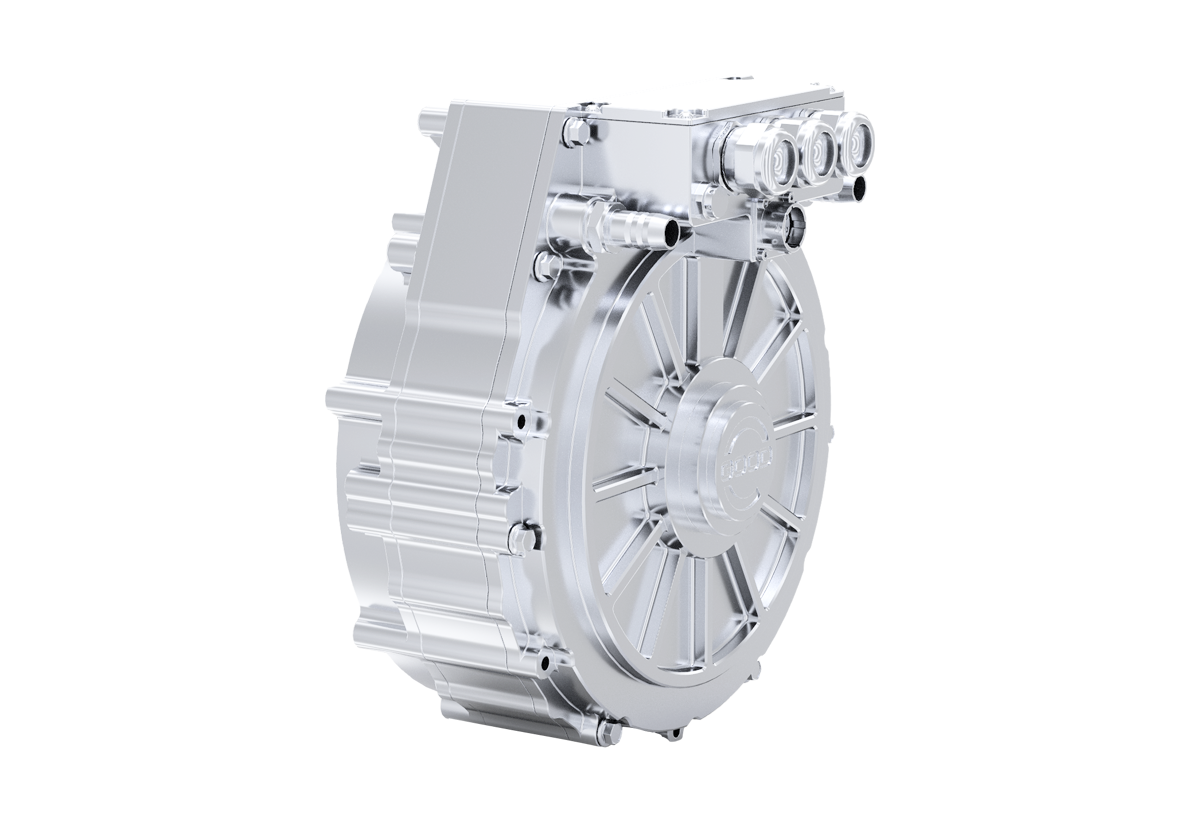

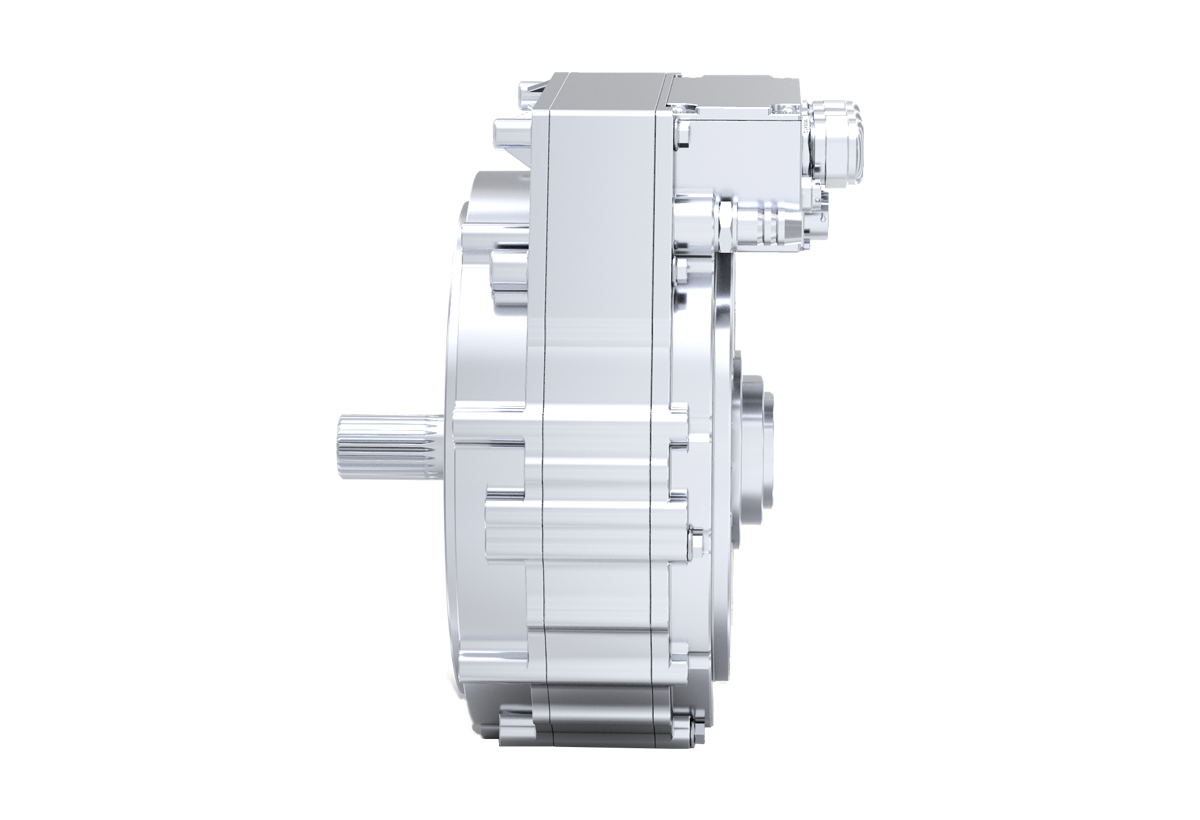

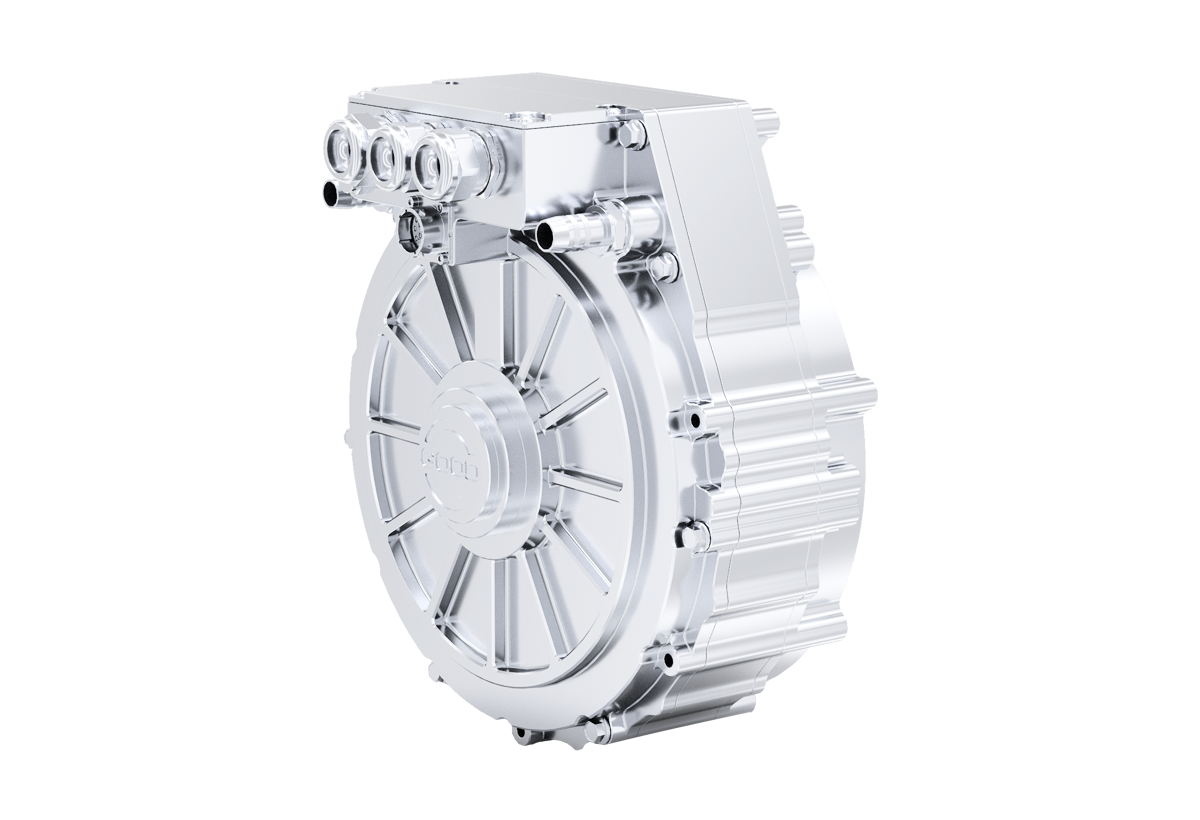

ICD150K
Dimensions(mm)：φ278.8x132.4x316
Rated power(kW)：60
Brochures
| Busbar voltage (VDC) | 350 |
| Rated power (kW) | 60 |
| Peak power (kW) | 150@400VDC |
| Rated speed (rpm) | 3820 |
| Peak speed (rpm) | 12000 |
| Rated torque(N·m） | 150 |
| Peak torque(N·m) | 330 |
| Maximum efficiency | 96.6% |
| Cooling form | Oil cooling |
| Dimension(mm) | φ278.8x132.4x316 |
| Weight (kg) | 24 |
