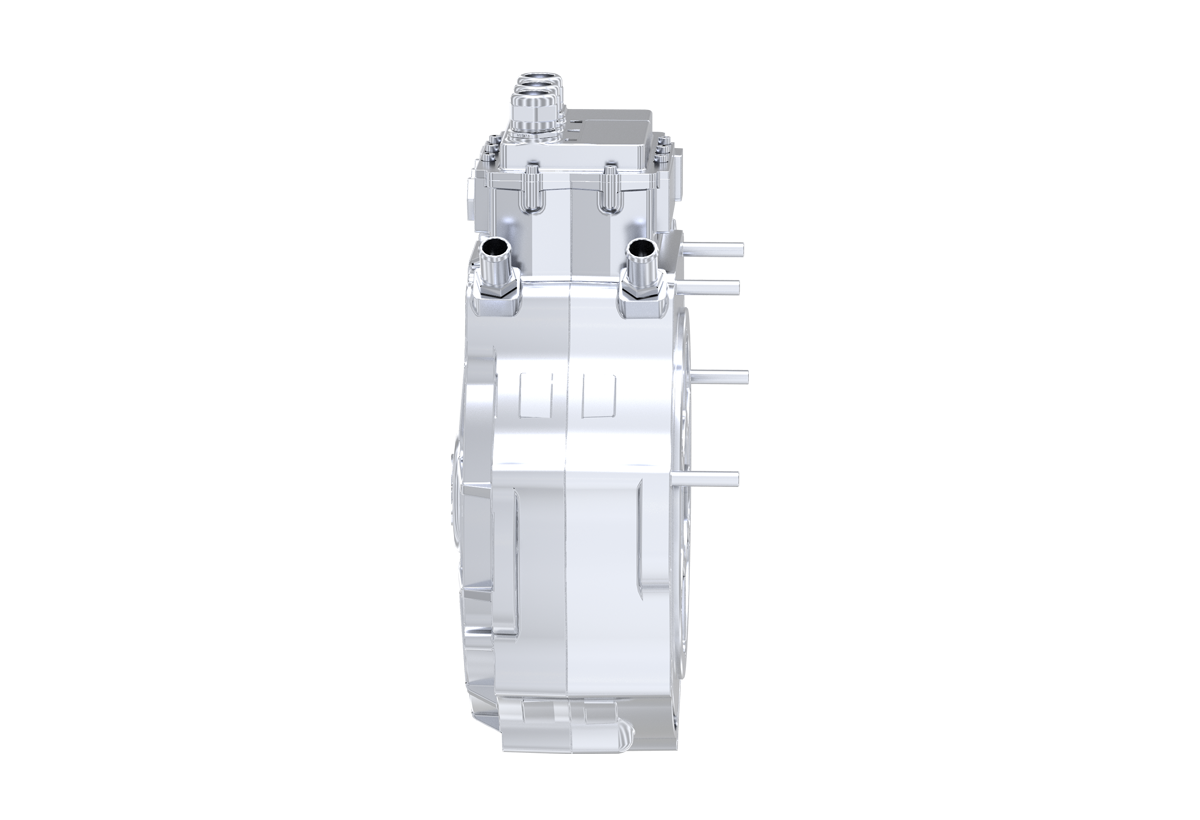

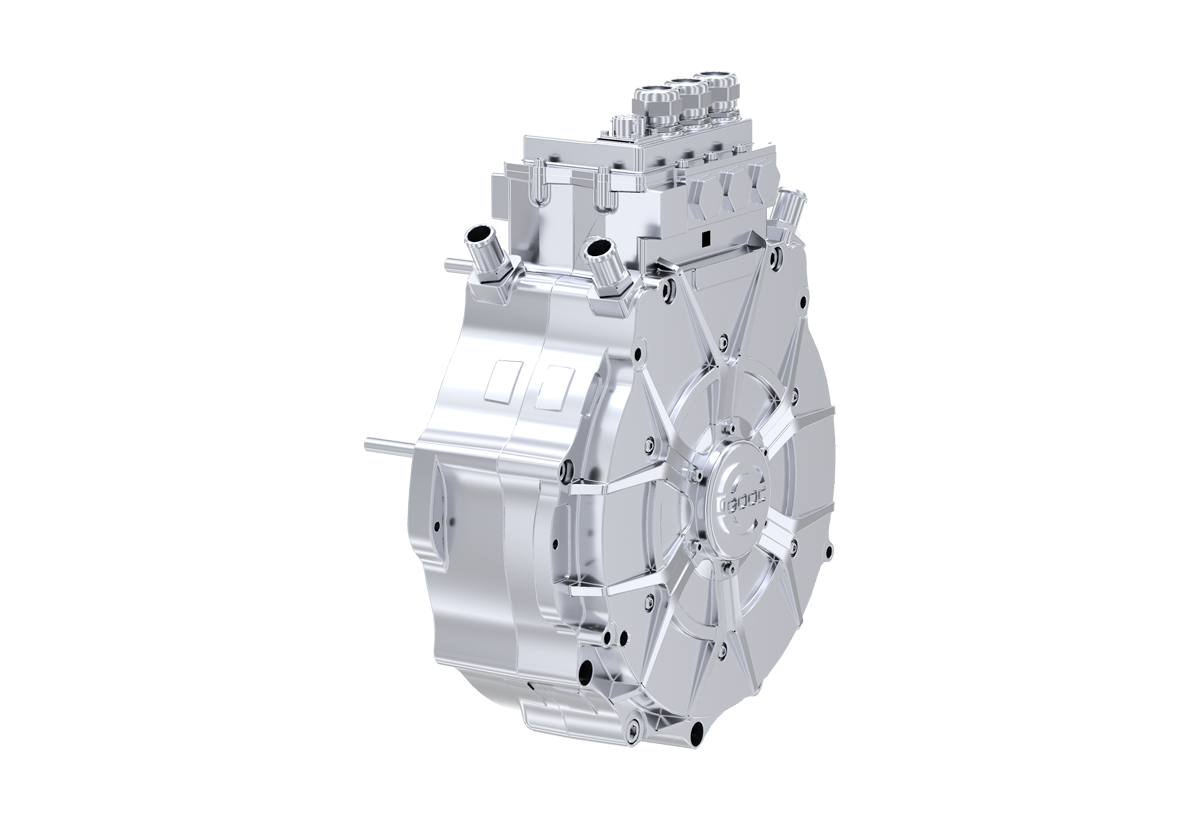

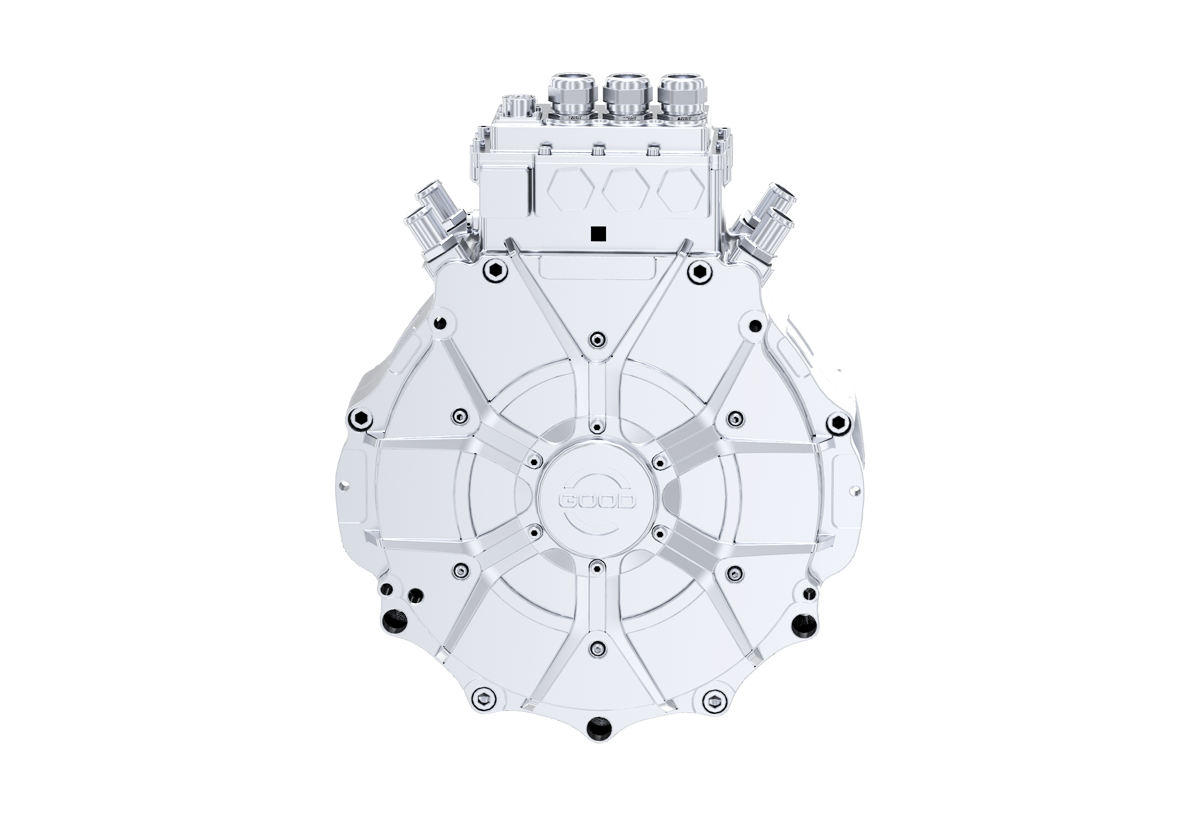

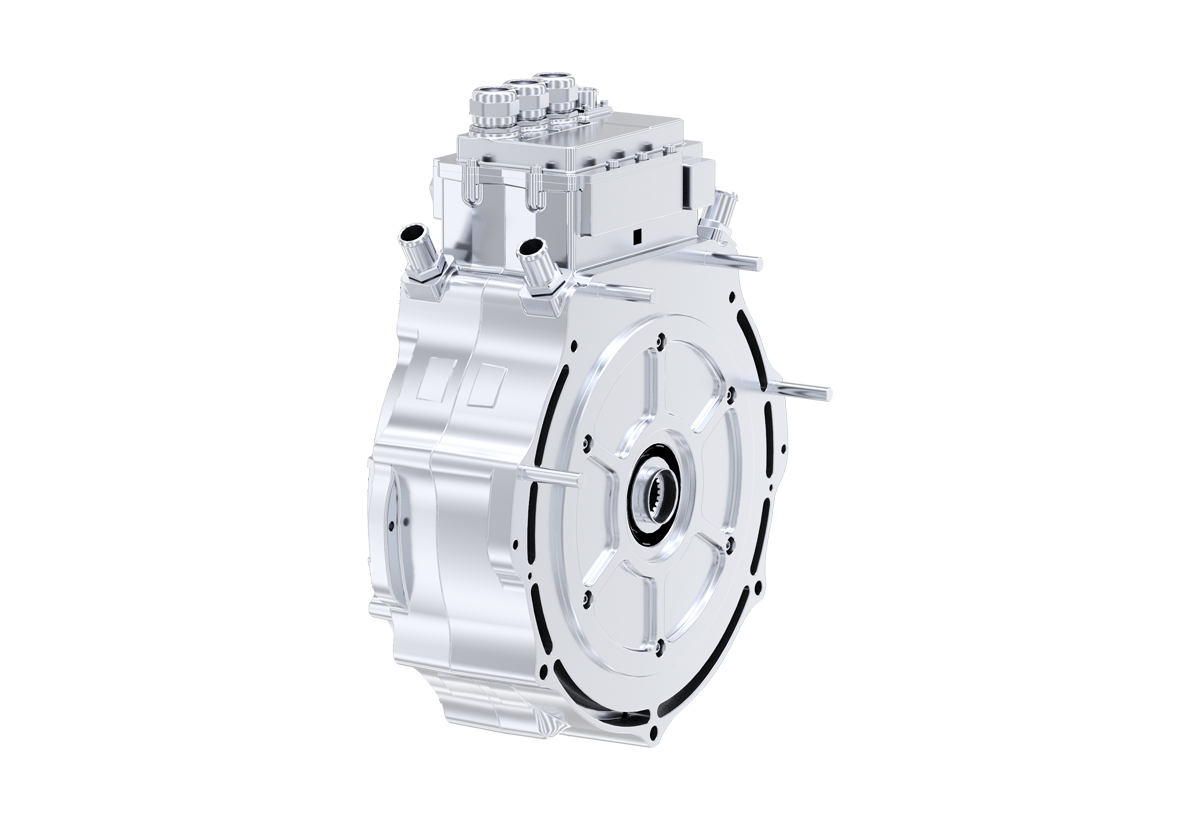

ICD150K
Dimensions(mm)：278.8x132.4x316
Rated power(kW)：60
Brochures
| Rated voltage (VDC) | 540 |
| Rated power (kW) | 92 |
| Peak power (kW) | 160 |
| Rated speed (rpm) | 4000 |
| Peak speed (rpm) | 9000 |
| Rated torque(N·m） | 220 |
| Peak torque(N·m) | 500 |
| Maximum efficiency | 96.9% |
| Cooling form | Water cooling |
| Dimension(mm) | φ353x147x408 |
| Weight (kg) | 43 |
Expand
