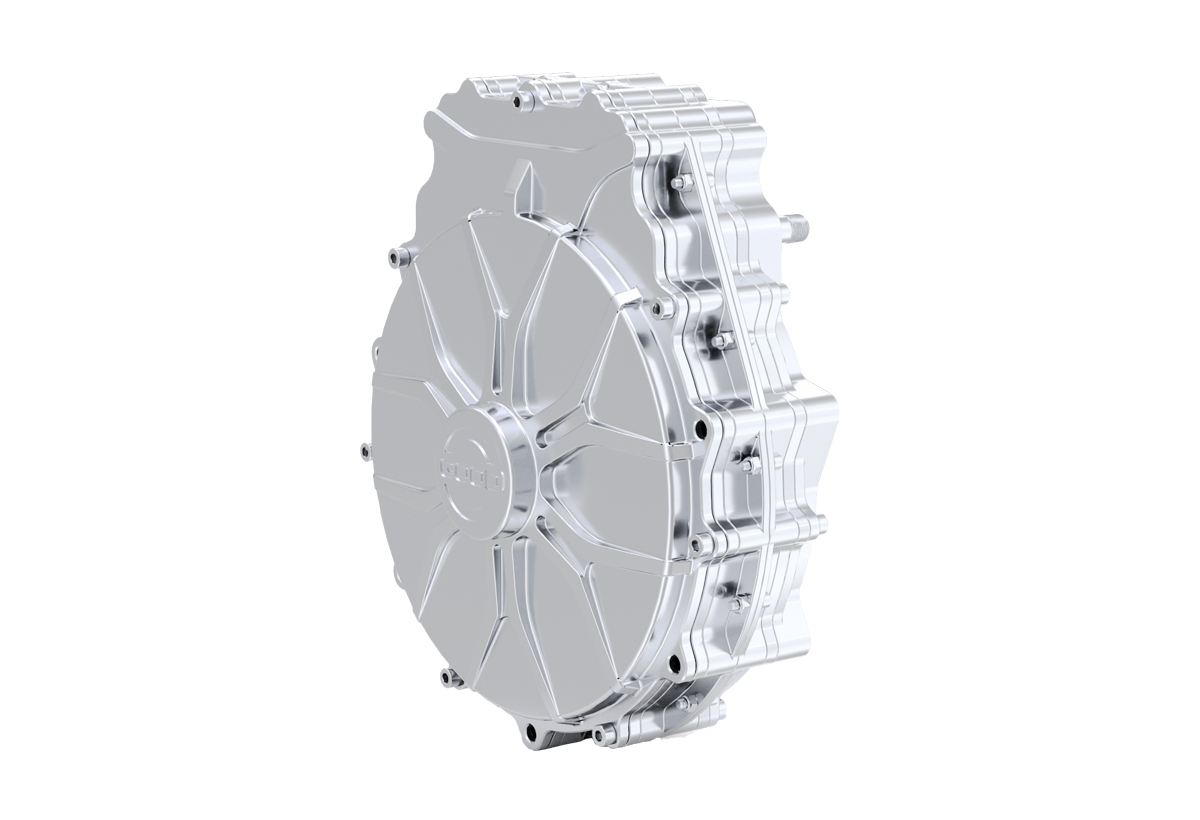

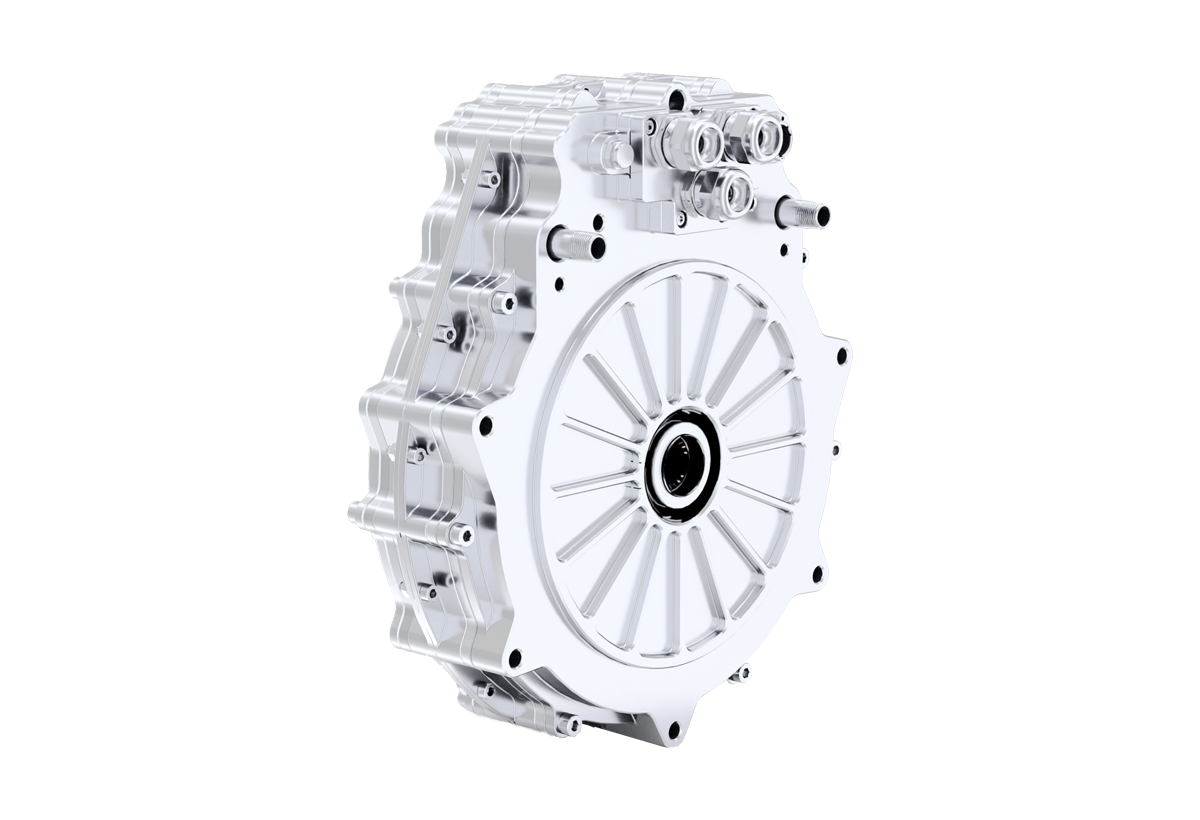

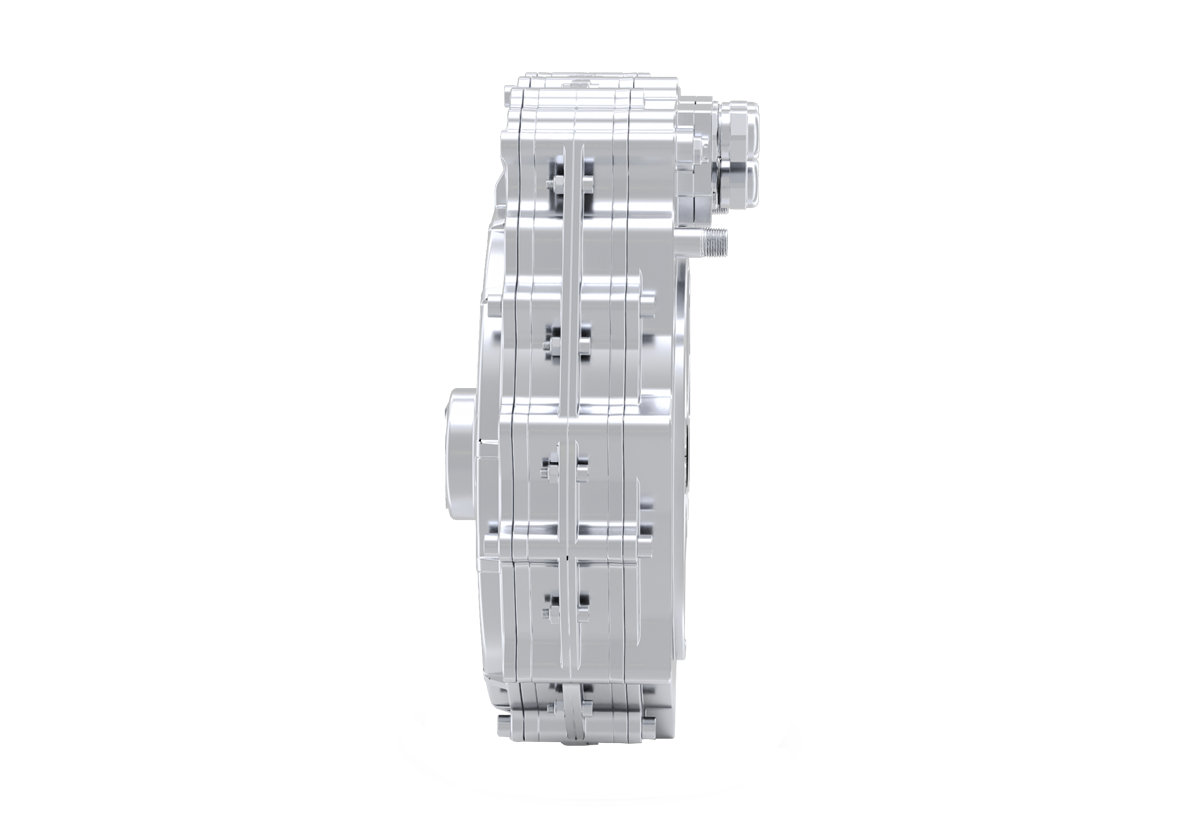

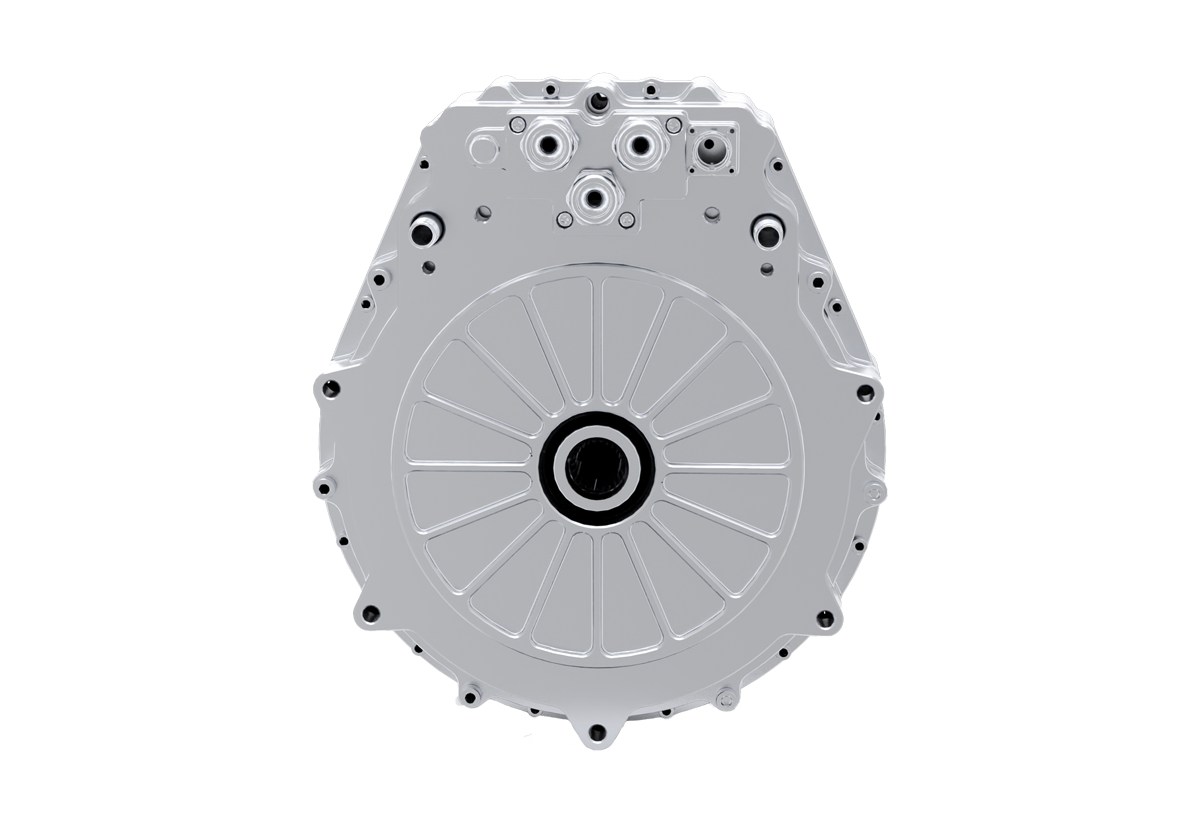

ICD150K
Dimensions(mm)：φ278.8x132.4x316
Rated power(kW)：60
Brochures
| Busbar voltage (VDC) | 540 |
| Rated power (kW) | 75 |
| Peak power (kW) | 180@600VDC |
| Rated speed (rpm) | 4000 |
| Peak speed (rpm) | 9000 |
| Rated torque(N·m） | 180 |
| Peak torque(N·m) | 420 |
| Maximum efficiency | 96% |
| Cooling form | Oil cooling |
| Dimension(mm) | φ304X148X318 |
| Weight (kg) | 25 |
